Compact Premium IR Infrared Repeater Kit System IR Emitters Extender

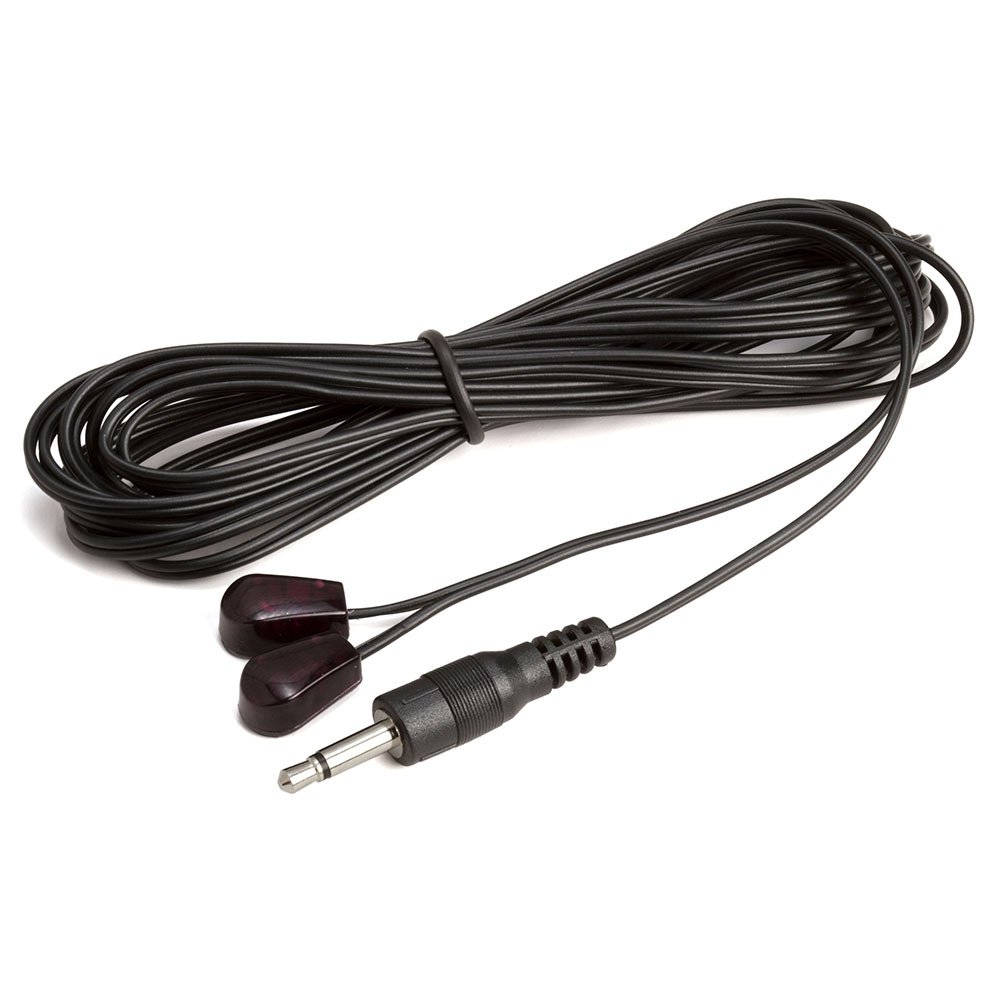

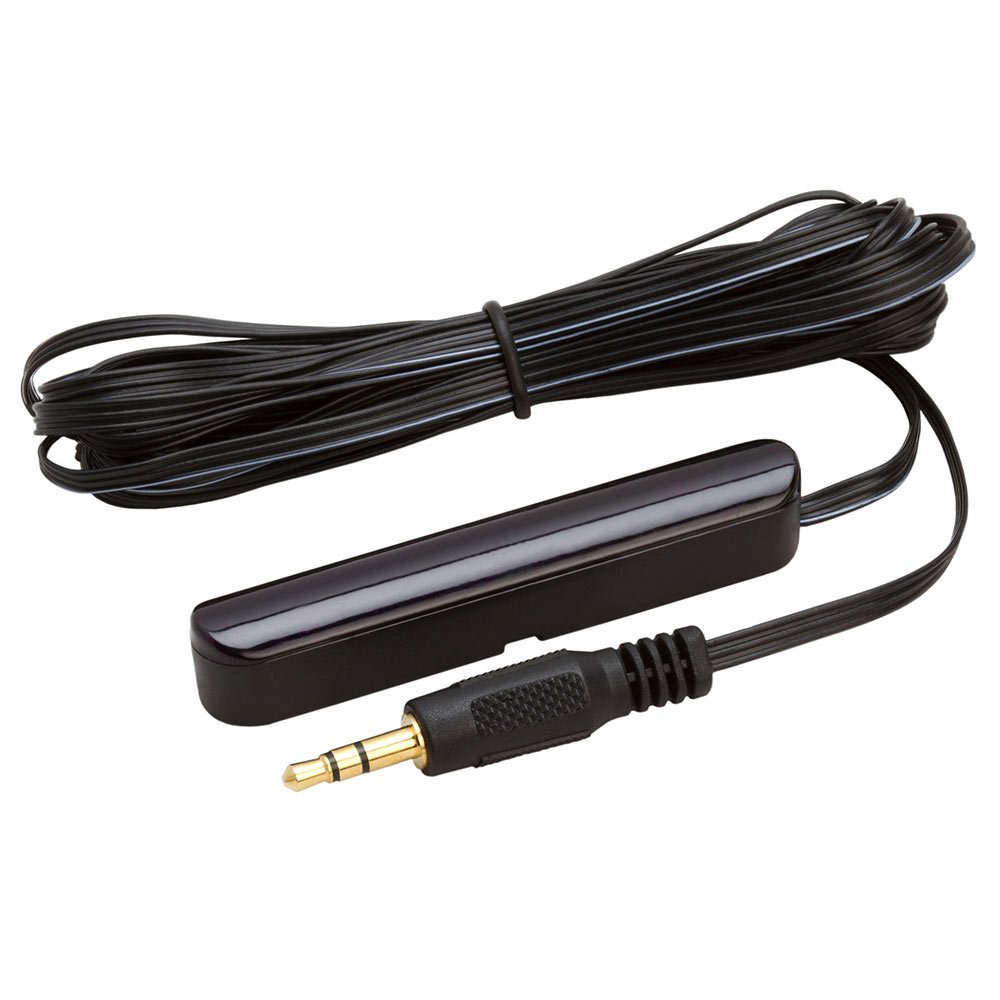

IR System Overview: Do you wish you could hide your entertainment system in a less obtrusive view, share a Blu-ray player between two rooms or perhaps control your stereo's volume from anywhere in your house? The Cmple Hidden IR Repeater System allows you to use an existing infrared (IR) remote control to operate up to six (6) audio/video (A/V) components located behind cabinet doors, in the rear of a room, in an entertainment cabinet, equipment closet or in a different room. The built-in IR distribution technology gives you the ability to conceal, yet still control bulky electronic equipment such as a cable box, satellite TV receiver, stereo receiver, amplifier, CD player, DVD player, Blu-ray player or virtually any component controlled by an IR signal. Essential Info: Use an existing IR remote control to operate hidden audio video components Allows IR signals to pass through solid doors or walls, line-of-sight to the components is not required The system allows for remote control of up to six (6) devices Confirmation LED built-in to the IR receiver acknowledges receipt of IR commands 40 foot range between an IR remote control and the IR receiver If you want to upgrade your IR system to 80 foot range click here IR connecting block Connecting block provides a place for connecting the IR receivers, emitters, and their respective power requirements. This device supports one IR receiver which is included. Connecting block supports up to two dual emitters (1 included), which connect into the unit via 3.5 mm mono phone jacks. The Main System Unit, which is the inchheartinch of an IR extender system, has LED indicator to monitor the IR system. Most installations call for the connecting block to be located close to the emitters and the supported components, such as: within a stereo cabinet or hidden out-of-sight in a closet. Works with practically all brands of Audio/Video IR remote controls Provides one IR Receiver input and two IR Emitters outputs Interface: 3.5mm mini plug (for receiver and emitters) Power L.E.D. indicator Power supply: 12VDC, 200mA Dimensions: 47 W x 25.5 H 22 D mm Dual Band IR Receiver IR Receiver, like the included surface mount model, is the incheyeinch of the system, which receives IR commands from hand-held remote controls and relays the commands to the Main System Unit. Compact IR receiver is intended for surface mounting on cabinets, TV sets, A/V equipment or on the wall with attached double sided adhesive. Clearly visible system status and IR activity LED’s provide positive feedback to the user. Designed to be surface mounted in multiple applications Works with practically all brands of Audio/Video IR remote controls IR receiving: 1 FT ~ 40 FT Operating Frequency: 38 KHz and 56 KHz Includes adhesive tape for IR mounting Blue IR confirmation LED provides user feedback when IR signals are sensed Connector Type: 1/8inch (3.5mm) mini plug 10 FT cable between IR receiver and 3.5 mm mini plug. Dimensions: 68 W x 13 H x 11.5 D mm If you want to upgrade your IR system to 80 foot range click here Dual IR Emitters (2 included) These small but mighty emitters have a self-adhesive pad that allows them to be stuck directly to the IR sensor window of your AV device, or can be used as a flood for multiple devices when properly mounted. IR transparent, works with existing remote controls and with all models of IR devices like Cable boxes, PVR's, DVR's, DVD players, Blu-Ray players etc. Dual Heads allow you to control multiple pieces of equipment with only one IR output. For use with Connecting Blocks, the mini stick-on emitters include a 10 FT cable between the emitter heads and the mini-plug. Designed to be surface mounted in multiple applications. Works with practically all brands of Audio/Video IR remote controls 10 FT cable between IR receiver and 3.5mm mini plug Includes adhesive tape for IR mounting Connector Type: 1/8 (3.5mm) mini plug Dimensions: 14 W x 6 H x 8 D mm If you want to upgrade your IR system to 80 foot range click here Easy Setup You can link your Hidden IR Repeater system to your A/V equipment in minutes. Just place the Hidden IR repeater box in your equipment cabinet, affix one of the 2 included IR (infrared) emitters to each A/V device's IR window, and mount the IR receiver using the included tape in a location where it can receive your IR remote control's transmitted signals. Place the IR receiver on a TV, shelf or on an exposed part of the cabinet. It does need to be in a direct line of sight from your normal seating position when you'll be using your remote. Use your A/V remote control as usual: the Hidden IR will transmit your command to the correct home theater component, so you'll be able to use your entertainment devices as usual, even though they'll be hidden from view. Package Contents 1 In-wall IR Connecting Block 1 Dual IR Emitters (control 2 devices) 1 Dual Band Mini IR Receiver Power Supply
